S-Power Solid-State Ground Power Unit Ensures Reliable Aircraft Ground Power

What is S-Power Solid-State Ground Power Unit?

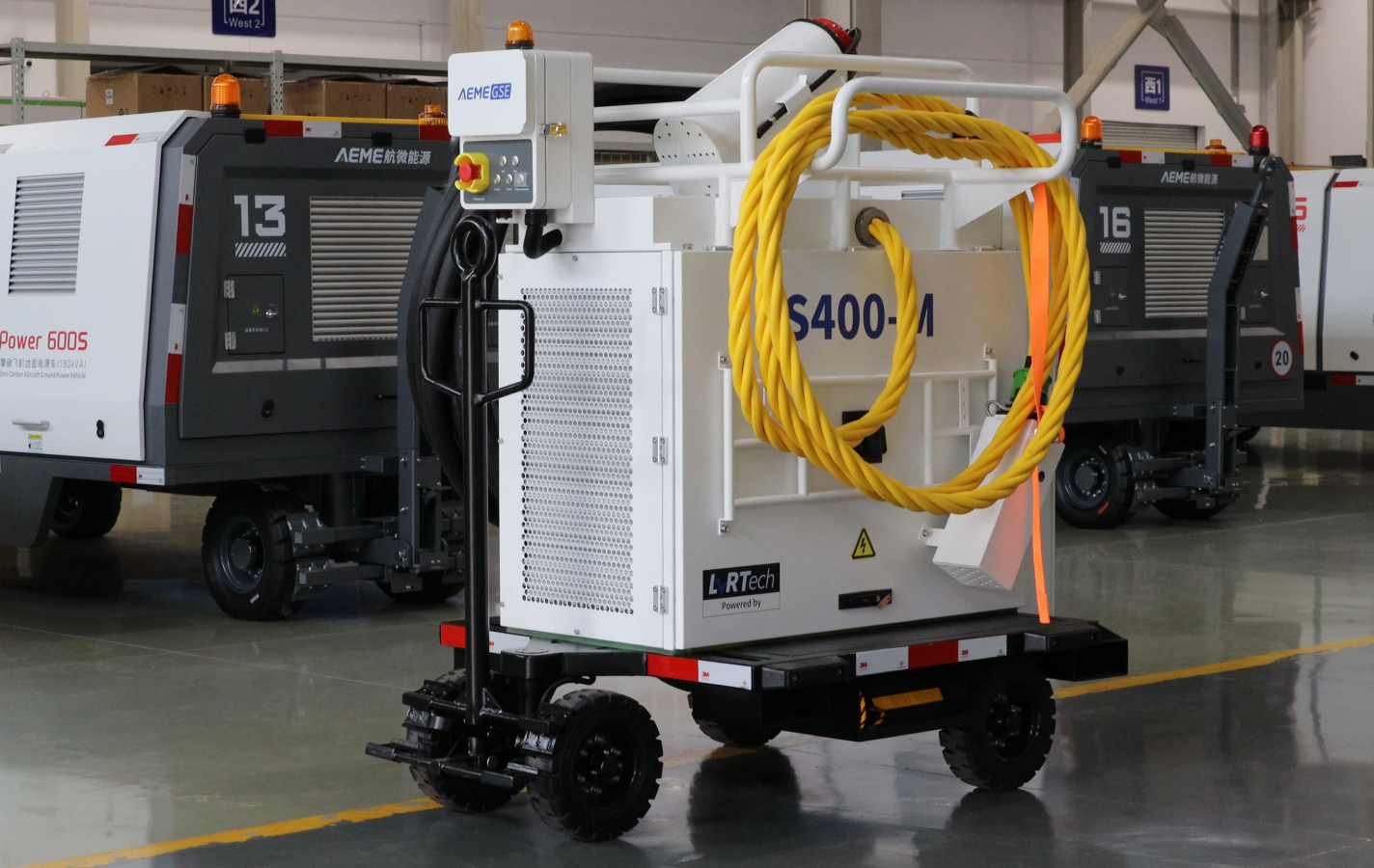

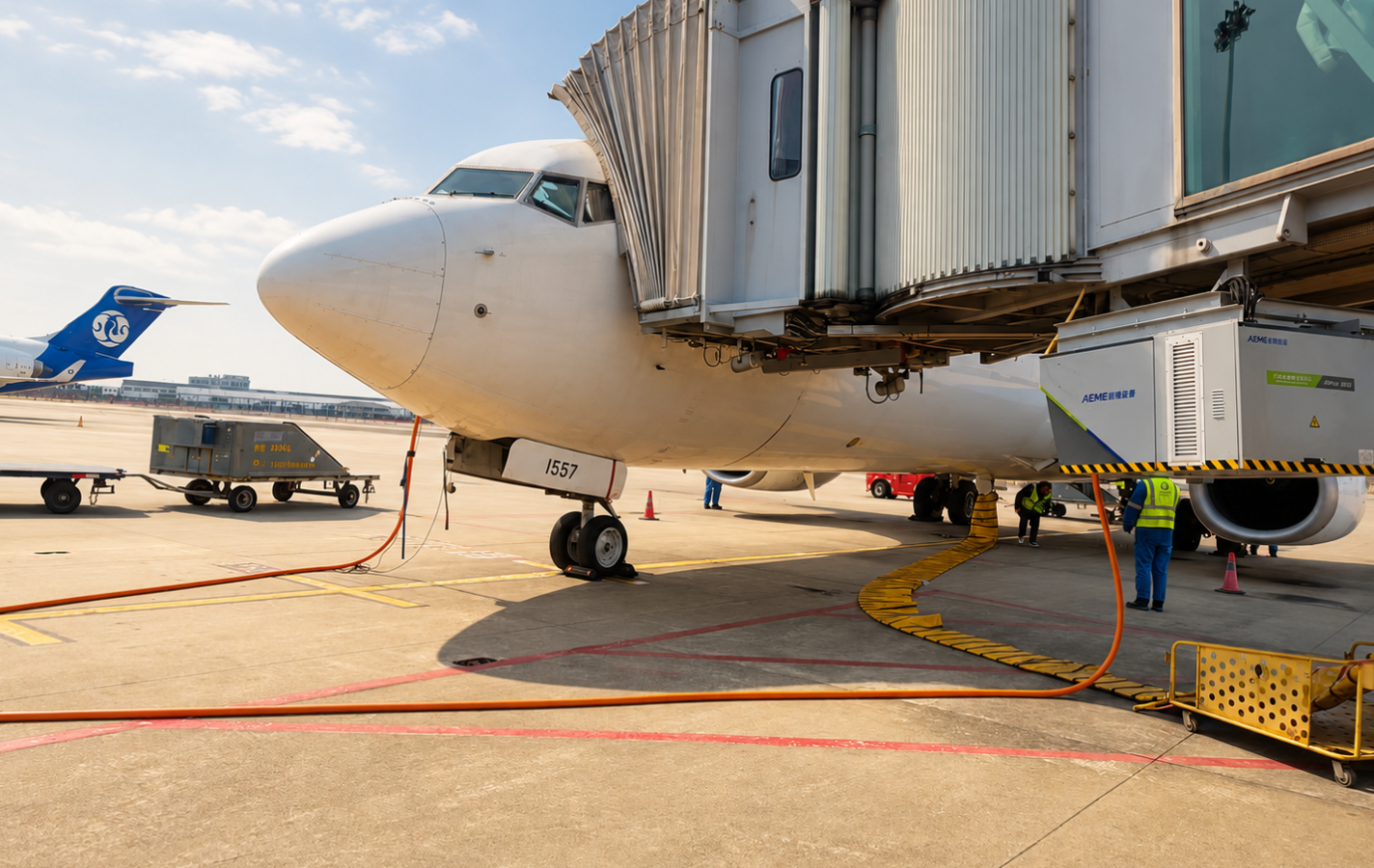

L: S400-M Mobile Ground Power Unit, Incheon, Korea R: S400-A Bridge-Mounted GPU, Nanning International Airport

The S-Power solid-state ground power unit is designed to provide stable and reliable 400 Hz or 28 VDC power, even under challenging conditions. It integrates technologies such as low-voltage ride-through (LVRT), space vector pulse width modulation (SVPWM), voltage decoupling control, and dynamic voltage compensation, which together maintain stable voltage output and consistent power delivery under unbalanced load conditions.

Today, more than 2,000 AEME GSE S400 Ground Power Units are in service at major airports worldwide, supporting aircraft operations every day.

LVRTech™: Maintaining Stability During Voltage Dips

Stable ground power is essential for aircraft avionics systems, maintenance activities, and pre-flight preparations while the aircraft is on the ground. To help ensure power continuity, the S400 incorporates Low Voltage Ride Through (LVRT) technology to maintain output during grid voltage fluctuations.

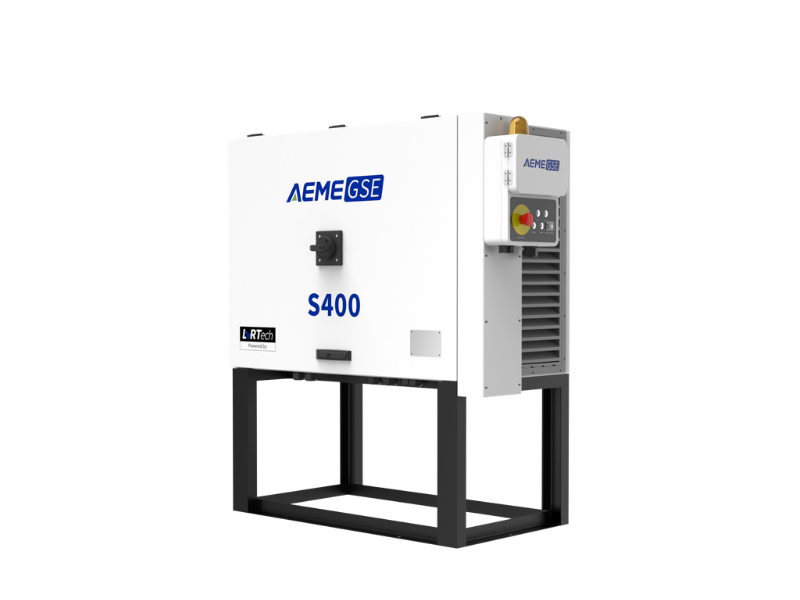

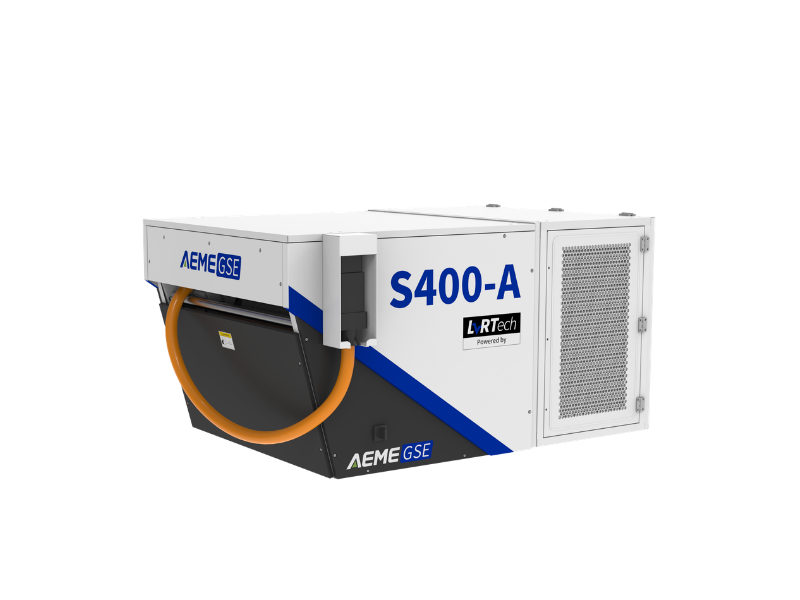

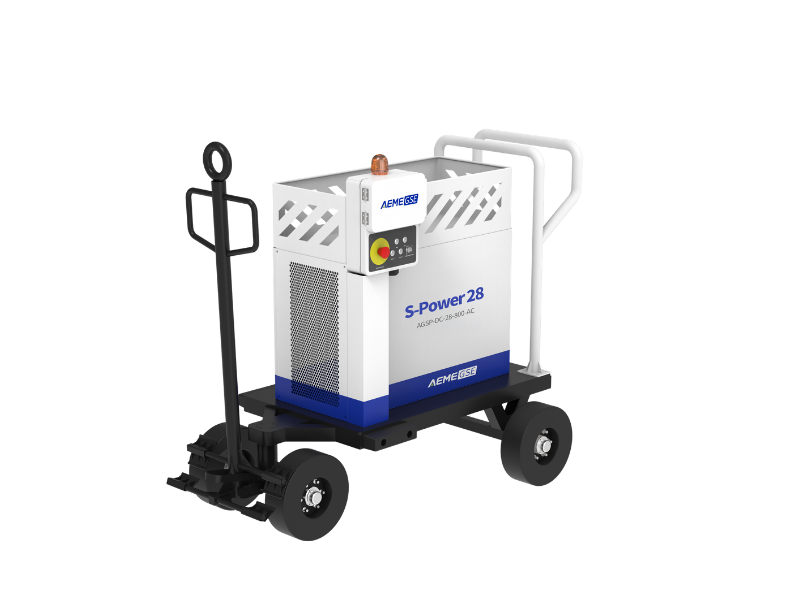

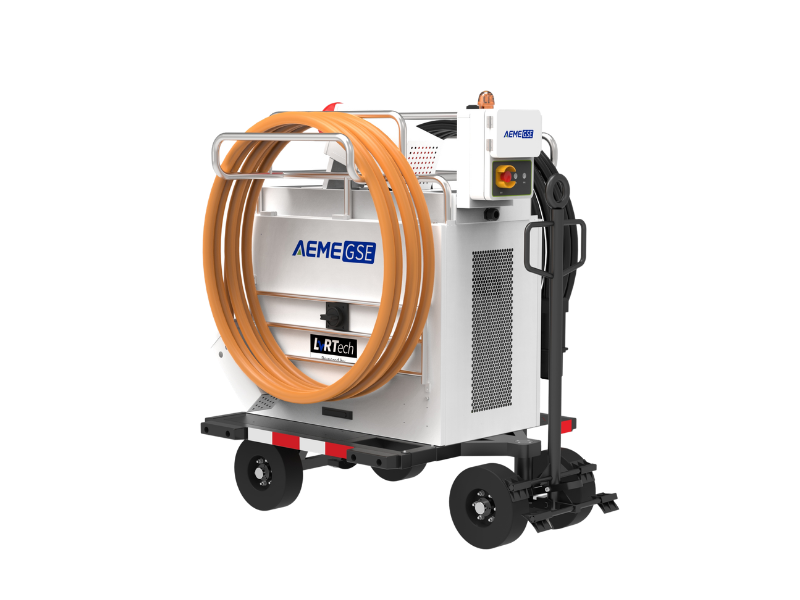

p1: S400-V Fixed Solid-State Ground Power Unit p2: S400-M Mobile Solid-State Ground Power Unit  p3: S400-A Bridge-Mounted GPU p4: S28 28 VDC GPU

AEME GSE's LVRTech™ is an independently developed voltage stability solution that enables the unit to continue operating during short-term grid voltage drops and interruptions. When operating below 50 kW and the input voltage falls by 60% (to 160 V), the unit can maintain operation for up to 2 seconds.

This extended ride-through duration provides several operational advantages:

• Critical Response Time: Gives maintenance teams valuable time to respond and initiate repairs.

• Effective Equipment Protection: Maintains power continuity to prevent faults or damage caused by voltage fluctuations.

• Enhanced Operational Continuity: Ensures reliable and continuous operation of airport ground equipment, supporting uninterrupted aircraft operations.

The combination of these features improves the reliability and safety of aircraft power supply, particularly in environments with unstable or fluctuating grid conditions. Built for performance, safety, and durability, the S400 series has become a trusted ground power solution for airports worldwide.

Contact AEME GSE now, discover your ground power unit.
